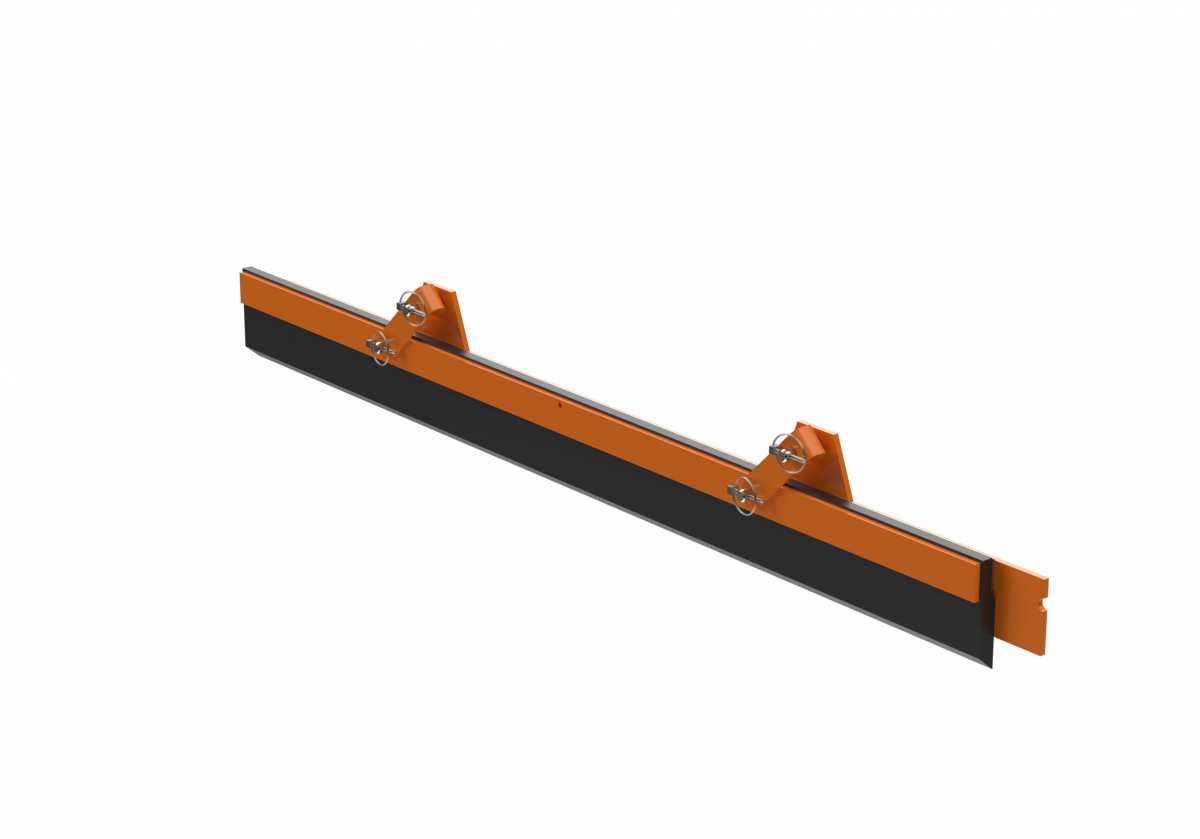

Self Adjusting Skirting HD

Self Adjusting skirting system rides the belt to create an effective seal automatically. Requires only six inches (152 mm) of clearance and only 1.5 inches (38 mm) free belt area for sealing. L System has an inward extension under the skirtboard to increase the range of tolerance for belt mistracking.

Features and Benefits:

  • Provides effective seal on conveyors with as little as 1.25 inches (32 mm) of free area on each side of belt
  • Rubber sealing strip is available in continuous lengths up to 300 feet (91.4 m)
  • Durable sealing strip provides wear life of 2 inches (51 mm)
  • Replacement of a worn sealing strip is a quick and easy operation; just remove the linchpins and replace the pre-punched rubber strip
  • Not suitable for reversing belts or belt with roll-back

Our technicians and engineers are available to provide expert advice and assistance on this product and all of your bulk material handling questions and problems. Please contact us today and let us help!

Resources

Brochure - Transfer Point Solutions Download
Tech Data Sheet - Self-Adjusting Skirting HD Download
Tech Data Sheet - Skirting Selection Guide Download
Operator Manual - Self-Adjusting Skirting HD Download
Drawing - Self-Adjusting Skirting HD Download

View Additional Resources

We Solved Their Problems!
Let us help you solve yours as well. All products and services provided by Martin Engineering carry our Absolutely No Excuses Guarantee. If we don't solve your problem, we will fully refund your money or provide a different solution for you. Period.
Martin® Self Adjusting Skirting Maintains Effective Seal Without Maintenance
A salt plant in Ohio was looking to upgrade their skirtboard sealing systems. The existing slab rubber skirting was in bad repair and leaking material. With less than two inches (51 mm) of free belt area on each side of the loading zone, the conveyor had very limited amount of space available for installation of a sealing system.
Read Case Study
Martin® Self Adjusting Skirting Faster And Easier To Install
At cement company, abrasive clinker would rapidly wear out the skirtboard sealing strips, creating a severe spillage problem at the conveyor’s loading zone. The sealing system required replacement every three weeks. Martin Engineering provided “Personalized Performance” by tailoring the Martin® Self Adjusting Skirting to provide improved corrosion resistance while remaining within the customer’s budget.
Read Case Study
Belt Sealing Products Reduce Cleanup and Maintenance Costs
Located on the Ohio River, the Mt. Vernon Transfer Terminal moves approximately 1.8 million tons of coal annually from trucks or railcars to barges for shipment to power plants. Excessive spillage from an underground belt below the railcar dumper increased cleanup costs and maintenance headaches. This conveyor is 84 inches wide with an operating speed of 150 fpm.
Read Case Study
